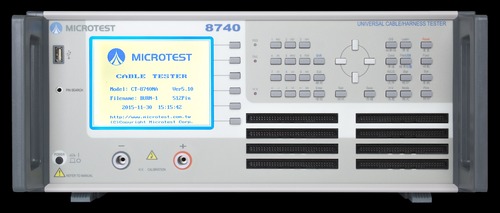

4-Wire Precision Cable/Harness Tester
Product Details:
- Product Type Cable Tester
- Material Aluminum
- Frequency (MHz) 50 - 60 Hertz (HZ)
- Color White
- Dimension (L*W*H) 15.2 x 12.7 x 7.6 Centimeter (cm)
- Weight 132 Grams (g)
- Click to View more
4-Wire Precision Cable/Harness Tester Price And Quantity
- 1000.00 - 3000.00 USD ($)/Unit
- 1 Unit
4-Wire Precision Cable/Harness Tester Product Specifications
- 132 Grams (g)
- 15.2 x 12.7 x 7.6 Centimeter (cm)
- Cable Tester
- White
- 50 - 60 Hertz (HZ)
- Aluminum
4-Wire Precision Cable/Harness Tester Trade Information
- 1000 Unit Per Month
- 3 - 4 Week
- All India
Product Description
4-Wire Precision Cable/Harness Tester
Our models of 4-Wire Precision Cable/Harness Tester have made a break through in technology of professional cable checking tool. To cater steady and suitable checking job and more cable setting to the personnel of manufacturing unit, all variants of 8730 model, enhances the plenty of files setting stockpile up to 250 groups. It enables the calling pace of setting directions amazingly fast in order to match the trail need of accurate wire and high production. Micrometeorites the reactivity of the examination capability of the brief broken circuit with the most cutting edge technology.
Technical Specifications
Measurement Data
| Model | 8761N | 8761NA | 8761FA |
| ACHipot | - | 100 ~ 700V | 100-1000V |
| DCHipot | 50 ~ 1000V | 50 ~ 1000V | 50-1500V |
| AC Hipot Leakage Current | 0.01mA ~5mA | ||
| DC Hipot Leakage Current | 0.1µA ~ 1000µA | ||
| DCHipot Insulation | 1MΩ~ 1.2GΩ | ||
| Hipot Output Accuracy | ±5% | ||
| Hipot Measurement Accuracy | ±5% |
|
|
| Rated Output | 5Vdc |
|
|
| Low Voltage Resistance | 0.1Ω ~ 20MΩ |
|
|
| Ponit of Test | 64/128/256 Points | 64/128/256Points | 64/128/256Points |
| Hipot Measurement Time | 0.01 Seconds - 60 Seconds | ||
| Test Scan Mode | Auto, Manual,External Trigger | ||
| Measurement Signal | Low Voltage Measurement Signal | ||
| DUT Requirement | Maximum Electric Capacity Allowance 3μF | ||
| Panel | System / Rapid / Edit / Function | ||
| Indicator | Pass/Fail HV LED red-green indicator lights/Screen Display/Sound | ||
Power Supply | Fixed Voltage115 / 230 Vac ±10% |
|
| Frequency60 / 50 Hz |
| Display | 320*240dot-matrix display |
| Interface | Printer Port, RS-232,USB |
| Flash Memory | Store up to 500 Sets of Test Settings Files |
| Operation | Manual、 Auto、Remote Control |
| Environment | Temperature :0℃ ~ 40℃ Humidity : RH≦75% |
| Dimension (W*H*D) | 8761(64) - 435x145x406 mm |
| Weight | 8761(64) - 8.44 kg |
Parameters Measurement Ranges
| Item | Range |
| Open/Short | 2KΩ ~ 100KΩ |
| Intermittence Open/ Short | 2KΩ ~ 100KΩ |
| Open/Short determinal Judge | Judge Momentary Broken Circuit |
| Conductance | 1mΩ ~ 52Ω |
| Resistance | 0.1Ω ~20MΩ |
| Capacitance | 10pF ~ 3µF |
| Diode | 0 - 6.8V |
| IR | 1MΩ~ 1.2GΩ |
| Single-Side Test | Able to do the Single-Side Test |
| ACHipot Leakage Current | 0.01mA ~5mA |
| DCHipot Leakage Current | 0.1µA ~ 1000µA |
