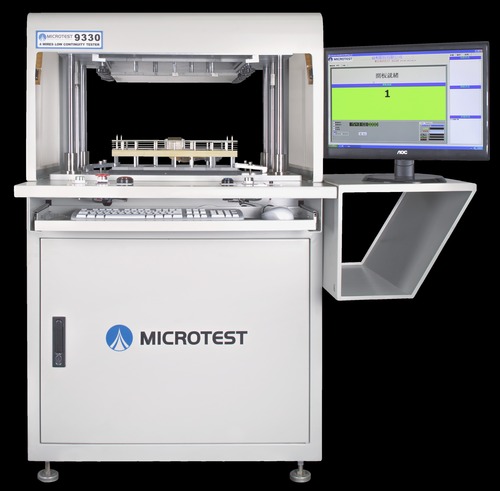

High Precision 4 Wire Low Impedance PCB Tester

Product Description

We are a trusted name in the industry for manufacturing and supplying an excellent range of High Precision 4-Wire Low Impedance PCB Tester. The main attribute of this tester is the resistance of the PC board copper wiring that enables to do the general examination and precision measurement simultaneously. Its structure is designed with double cylinder press to increase the stability of the testing. We follow stringent parameters to ensure a defect free range of High Precision 4-Wire Low Impedance PCB Tester is delivered to clients.

Features:

• Easy to use
• Compact design
• Accurate results

Description

The key feature of High Precision 4 Wire Low Impedance PCB Tester is the resistance of the Personal Computer board copper wiring is enable to carry out the precision measurement and general examination at the same time. At the mean time, the lowest level resistance can be analyzed to 1m. The mechanical construction with twin cylinder press to enhance the strength of the testing. The present applied sector is the high-tech 3C products. For example, the wearable electronics and the smart phones require superior quality testing of FPCB or PCB, and the great security needs of Person Computer Board of the central equipment control panels and the varied sensible components of the cars needs a lot of high accurate testing tool.

Feature

• With Chinese or English operating system
• With self-testing function
• The system provide auto scan and pin search
• Open test : Test the impedance of nearby nets
• Test point: Max. 4096 points
• Short test :Binary fast test function
• 4-wire test / 2-wire test in one testing
• High voltage open test : Max voltage DC300V
• Stable double cylinders press system
• Statistics of testing results



Specification
