Industrial Impedance Analyser

Product Description

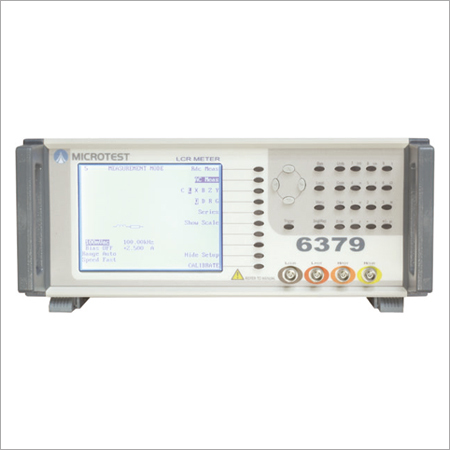

6377 Impedance Analyzer instrument designed with high accuracy, speed, and cost-utility. It is possible to perform full range of component test. This can be used along with DC Bias models. Friendly interface design in synchronization with the international trend, simple operation, quickly imported production lines. A number of parameters are measured with a single set, and displayed once. The measured data with superior efficacy of high-precision values for components and materials indispensable test can be done with this equipment. Support RS232 and other special Handler expansion interface and GPIB PC connection. Measurement can be used in resistors, capacitors, inductors, oscillators, sensors, delay lines, filters, resonators, etc..

MICROTEST Impedance Analyzer series offers special fixture, even if the object to be measured is small. It will also reduce the amount of measurement error factors arising in the fixture. Impedance Analyzer series provides optional accessories related to the applications.

 Features

• 0.1% Basic Accuracy
• DC Measurement Time  30mS
• AC Measurement Time  75mS
• 20Hz ~ 1MHz
• 4 Terminal BNC Guarded Connections
• Comprehensive Measurement Functions
• Straight Forward Intuitive Operation
• Multi Step Function
• Graphical Sweep Mode
• Can Pair with DC Bias Current source
• Unbeatable Performance
• GPIB and RS232 Interface
• PC Link Software
• Convenient to Carry

Test Function

• Z R X 0.1m Ohm ~100.00m Ohm
• D 0.0001~9.9999
• Y G B 10nS~1000S
• Q 0.1~9999.9
• Cs Cp 0.01pF~1F
• DCR 0.1m Ohm~100M Ohm
• Ls Lp 0.1nH~100KH
• Angle -180ø ~ +180ø
