2 in 1 Comprehensive Transformer Testing System
Product Details:
- Product Type Transformer Tester
- Material Aluminum
- Frequency (MHz) 20 Hz to 2 MHz.. Hertz (HZ)
- Color White
- Click to View more
2 in 1 Comprehensive Transformer Testing System Price And Quantity
- 1 Unit
- 1000.00 - 3000.00 USD ($)/Unit
2 in 1 Comprehensive Transformer Testing System Product Specifications
- 20 Hz to 2 MHz.. Hertz (HZ)
- White
- Transformer Tester
- Aluminum
2 in 1 Comprehensive Transformer Testing System Trade Information
- 1000 Unit Per Month
- 3 - 4 Week
- All India
Product Description

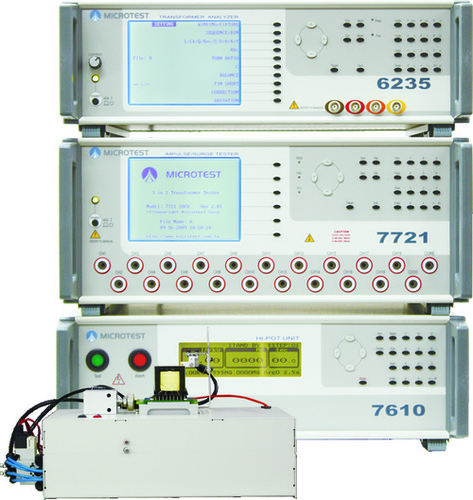

6235+7620 2 in 1 Comprehensive Transformer Testing System
Our two in one comprehensive transformer testing system includes two model of testers, i.e., transformer tester (623x series) and hipot tester (7620). It has the capability to conduct tests simultaneously on High as well as on Low Voltage. Besides, it can also do multiple winding test and the frequency can reach up to 1MHz. This testing system has 8-port scan test, option for meter mode and can be utilized as LCR meter.
6235
- Basic precision up to 0.1%
- Test frequency up to 1MHz
- Synchronous tests with multiple parameter settings
- Able to test 30 items per second under fastest test speed
- Optional Meter Mode function
- High accuracy and stability
- 8-port scan test
- Test items include (AC Withstand, DC Withstand, Insulation Resistance)
- User-friendly interface, easy to operate
- Rise time setting
Specification
| Transformer Tester | Hipot Tester | ||
| 6235 | 6236 | 6237 | 7620 |
| Max. Frequency | Output Voltage V | ||
| 200K Hz | 500K Hz | 1M Hz | AC 100V ~5KV |
|
|
|
| DC 100V~6KV |
|
|
|
| Insulation Resistance 100V ~ 1KV |
6235 Transformer Tester
| Measurement Parameters | |
| Turn Ratio, Phase, L, Q, Leakage L, Balance, ACR, Cp, D, X, Y, DCR, Pin-Short | |
| Parameters Measurement Ranges | |
| L, LK | 0. 1nH ~ 9999.99H |
| C | 0.00001pF ~ 999.99mF |
| Q, D | 0.00001 ~ 99999 |
| Z, X, R | 0.00001Ω ~ 99.9999MΩ |
| Y | 0.01nS ~ 99.9999S |
| θ | -180°~ +180° |
| DCR | 0.01mΩ ~ 99.999MΩ |
| Turn Ratio | 0.01 ~ 99999.99turns |
| Pin-Short | 12 pairs, between pin to pin |
| Specification | |
| Flash Memory | 64 Files |
| LCD Display | 320*240 dot-matrix display |
| Power Supply | Voltage 90Vac ~ 125Vac or 190Vac ~ 250Vac |
|
| Frequency 48Hz ~ 62Hz |
| Dimension (W*H*D) | 360x133x420 mm |
| Weight | 9 kg |
7620 Hi-Pot Tester
| Test Channel | |||
| 8 Channels | |||
| Measurement Item | AC | DC | IR |
| Voltage | 100V ~ 5000V | 100V ~ 6KV | 100 ~ 1KVdc |
| Frequency | 50 / 60Hz | - | - |
| Range | 0.001 ~ 10mA | 0.001 ~ 5mA | 1M ~ 9.99GΩ |
| Arcing | 1 ~ 9 | 1 ~ 9 |
|
| Resolution | 10 | ||
| Accuracy | ±(3% of setting+5V) | ||
| Specification | |||
| Flash Memory | 30 Sets | ||
| LCD Display | 128 x 64 graphic | ||
| Power Requirements | Voltage 115 / 230Vac ± 15% | ||
|
| Frequency 50 / 60Hz ± 5% | ||
| Dimension (W*H*D) | 435x133x455 mm | ||
| Weight | 15 kg | ||
