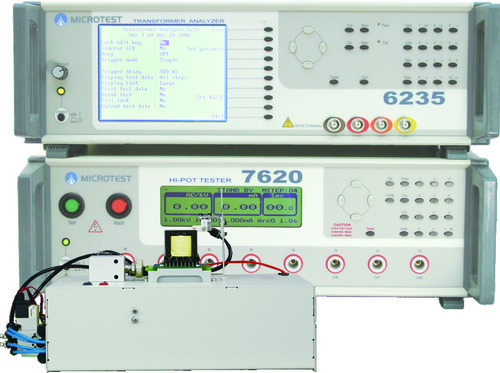

3 in 1 Comprehensive Transformer Testing System
Product Details:
- Product Type Transformer Tester
- Material Aluminum
- Frequency (MHz) 20 Hertz (HZ)
- Color White
- Click to View more
3 in 1 Comprehensive Transformer Testing System Price And Quantity
- 1 Unit
- 1000.00 - 3000.00 USD ($)/Unit
3 in 1 Comprehensive Transformer Testing System Product Specifications
- 20 Hertz (HZ)
- Transformer Tester
- White
- Aluminum
3 in 1 Comprehensive Transformer Testing System Trade Information
- 1000 Unit Per Month
- 3 - 4 Week
- All India
Product Description
Our two decades of experience enable us to manufacture, supply and export highly reliable 3 in 1 Comprehensive Transformer Testing System. Our experienced and expert team of professionals has designed this tester with latest technology in the market. The quality of this tester is according to the international standards. Our Automatic Transformer Tester is capable of testing with multiple parameter settings. It has automatic level control and multi winding testing function. These testers are easy to operate. Our testers are available at affordable prices.
Features:
- High accuracy
- Durable for a long time period
- User friendly interface
- Automatic Transformer Tester
- 623x series + 7721+6905 (transfermoer tester+Impulse/Surge tester+Hipot tester) 3 in 1 comprehensive transformer testing system, the one-stop comprehensive transformer testing system is the only product adopted by major Japanese manufacturers.
- Basic precision up to 0.1%
- Test frequency up to 1MHz
- Synchronous tests with multiple parameter settings
- Able to test 30 items per second under fastest test speed
- Optional Meter Mode function
- High accuracy and stability
- The fully programmable continuous test
- Measurement items include Area under curve comparison, Area size comparison, Waveform comparison, Flutter, Corona
- Automatic Level Control Function (ALC)
- 21 Channel test With Multi Winding Test Function
- Test items include (AC Withstand, DC Withstand, Insulation Resistance)
- Rise time setting
- User-friendly interface, easy to operate
Specification
| Transformer Tester | Impulse/Surge Tester | Hi-Pot Tester | ||
| 6235 | 6236 | 6237 | 7721 | 7620 |
| Max Frequency | Impulse Voltage | Output Voltage V | ||
| 200K Hz | 500K Hz | 1M Hz | 200 ~ 5000V Programmable | AC 100V ~5KV, DC 100V~6KV , IR 100V ~ 1000V |
- 6235 Transformer Tester
- 7721 Impulse/Surge Tester
- 6905 Hipot Tester
| Test Mode | ||||
| AC, DC , IR | ||||
| Test Channel | ||||
| 2 Channel | ||||
| Measurement Data | ||||
| AC Hi-Pot | 100V ~ 5000V AC, 50 / 60Hz, 0.01 ~ 10mA | |||
| DC Hi-Pot | 100V ~ 6000V, 0.01 ~ 5mA | |||
| Insulation | DC 100 ~ 1000V, 1M ~ 9.99GΩ | |||
| Arcing | 1 ~ 10mA | |||
| Item | Range | Resolution | Accuracy | |
| AC Withstand (Output Voltage V) | 100V ~ 5000V | 10 | ±(3% of setting+5V) | |
| DC Withstand (Output Voltage V) | 100V ~ 6000V | 10 | ±(3% of setting+5V) | |
| Insulation Resistance (Output Voltage V) | 100 ~ 1000Vdc | 10 | ±(3% of setting+5V) | |
| Specification | ||||
| Memory | 30 Sets | |||
| LCD Display | 320 x 240 graphic | |||
| Power Requirements | Voltage 115 / 230Vac ± 15% | |||
|
| Frequency 50 / 60Hz ± 5% | |||
| Dimension (W x H x D) | 435x133x455 mm | |||
| Weight | 15 kg | |||
