6370 LCR Meter
Product Details:
- Color White
- Product Type LCR Meter
- Usage For Industrial use
- Material Aluminum
- Accuracy 0.1 %
- Display Type Digital Only
- Click to View more
6370 LCR Meter Price And Quantity
- 1-10 Unit
- 1000.00 - 3000.00 USD ($)/Unit
6370 LCR Meter Product Specifications
- For Industrial use
- Digital Only
- Aluminum
- LCR Meter
- 0.1 %
- White
6370 LCR Meter Trade Information
- 1000 Unit Per Month
- 3 - 4 Week
- All India
Product Description
Features
- Basic accuracy up to 0.1%
- LCR Meters are all compatible with convenient and efficient Meter Link Software
- Overall Compact design, good for production line use
- User-friendly interface, allows for production line personnel to operate efficiently
Measurement Data
| Test Frequency | 100Hz-20KHz |
| Points Of Test Frequency | 372 points |
| Basic Accuracy | ± 0.1% |
| AC Drive Level | 0.05V、0.1V、0.25V、0.5V、1V |
| DC Drive Level | 0.5V |
| Output Impedance | 100Ω |
| Frequency trimming resolution | 10 Digits |
| Frequency output accuracy | ± 0.01% |
| AC test speed (Fast) | 5 times/sec |
| AC test speed (Medium) | 3 times/sec |
| AC test speed (Slow) | 2 times/sec |
| DC test speed (Fast) | 5 times/sec |
| DC test speed (Medium) | 3 times/sec |
| DC test speed (Slow) | 2 times/sec |
| Bias voltage | 2V |
Technical Specifications
| ESR | Series/Parallel |
| Mathematical Mode | Absolute/Percentage |
| Test Range | Automatic/Lock |
| Indicator | Pass/Fail/Bias LED and Built-in speaker |
| Output Terminal | BNC connector |
| Safety | EN61010-1 |
| Immunity | EN61326-1 |
| Emissions | EN55022 Class A |
| Calibration | Open Circuit / Short Circuit: Avoid the misreading caused by the stray capacitance from kelvin clips and fixtures |
| Power Supply | Voltage 90-132Vac or 198-264Vac (selectable) |
|
| Frequency 47-63Hz |
| Display | 240*64 dot-matrix display |
| Interface | RS-232, GPIB (option), Handler (option) |
| Flash Memory | Storage of 127 rewritable data sets |
| Operation | Auto、Manual、Remote Control、RS-232、GPIB (option) |
| Environment | Temperature : 10°C to 40°C Humidity : 20 ~ 90% |
| Dimension (WxHxD) | 340x88x330 mm |
| Weight | 5 Kg |
Parameters Measurement Ranges
| ｜Z｜ R X | 0.1 mΩ - 100MΩ |
| ｜Y｜ G B | 10nS - 1000S |
| Cs Cp | 0.01pF - >1F |
| Ls Lp | 0.01nH - 100KH |
| D | 0.00001 - 9.9999 |
| Q | 0.1 - 9999.9 |
| DCR | 0.1mΩ - 100MΩ |
| Δ% | -999.99% - 999.99% |
| Θ | -180° - +180° |
Applications
Resistance, Capacitance, Inductance, Oscillators, Sensors, Delay Line, Filters, Resonators.

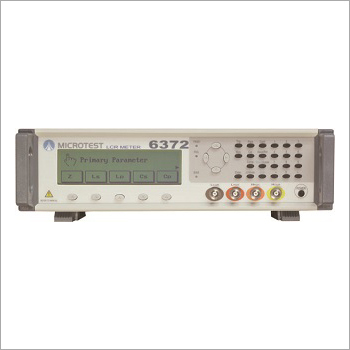

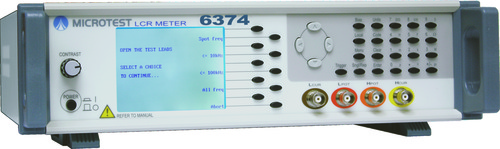

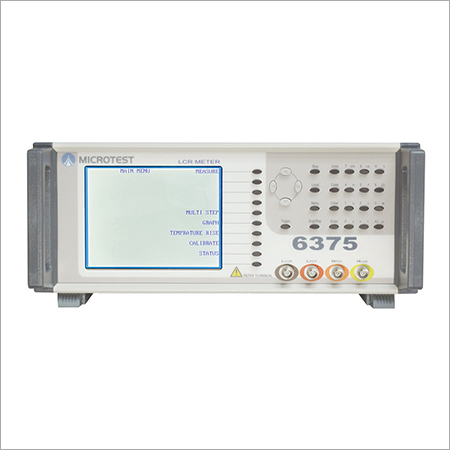

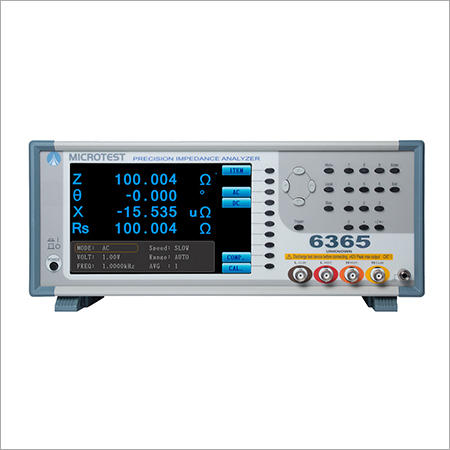

Other Products in 'LCR Meter' category
