High Speed LCR Meter
Product Details:
- Product Type LCR Meter
- Color White
- Usage For Industrial Use
- Material Aluminum
- Accuracy 0.05 %
- Display Type Analog Only
- Click to View more
High Speed LCR Meter Price And Quantity
- 1-10 Unit
- 1000.00 - 3000.00 USD ($)/Unit
High Speed LCR Meter Product Specifications
- For Industrial Use
- 0.05 %
- White
- Analog Only
- Aluminum
- LCR Meter
High Speed LCR Meter Trade Information
- 1000 Unit Per Month
- 3 - 4 Week
- All India
Product Description
This 6375 model LCR Meter offered by is widely known for high speed and high accuracy. This is a very cost-effective and multiple-function applications and is able to act the component test thoroughly. This kind of device can put with DC Bias. Its user-friendly function interface design is in accordance with the international standards and simple to run so as to import into the output lines quickly. Synchronous tests with varied settings of parameter. Owing to the great precision values of computed data and excellent efficacy, it must be an important testing meter of materials and components. High Speed LCR Meter aids the interfaces of USB, LAN, RS232 and GPIB PC connections.
Features
- Basic accuracy up to 0.1%
- Synchronous tests with many parameter settings
- Measurement of wide range of functions: Freq. to 5 Digits, signal level of 10mV to 2Vrms
- Collocating DC Bias to progressing current scanning analysis
- Fixture design capabilities, Specific customized services for clients
- LCR Meters are all compatible with convenient and efficient Meter Link Software
Measurement Data
| Test Frequency | 20Hz-200KHz |
| Points Of Test Frequency | Continuity |
| Basic Accuracy | ± 0.1% |
| AC Drive Level | 10mV to 2Vrms (1m Vrms steps) |
| DC Drive Level | 0.01V~2V |
| Output Impedance | 100Ω |
| Frequency trimming resolution | 5 Digits |
| Frequency output accuracy | ± 0.01% |
| AC test speed (Max.) | 75mS |
| AC test speed (Fast) | 150mS |
| AC test speed (Medium) | 450mS |
| AC test speed (Slow) | 600mS |
| DC test speed (Max.) | 30mS |
| DC test speed (Fast) | 60mS |
| DC test speed (Medium) | 120mS |
| DC test speed (Slow) | 500mS |
| DC Bias Current Source | Option (Model 6220) |
Technical Specifications
| Measured Value Detection Mode | Define upper and lower thresholds according to main and sub parameters |
| ESR | Series/Parallel |
| Mathematical Mode | Absolute/Percentage |
| Test Range | Automatic/Lock |
| Indicator | Pass/Fail/Bias LED and Built-in speaker |
| Output Terminal | BNC connector |
| Safety | EN61010-1 |
| Immunity | EN61326-1 |
| Emissions | EN55022 Class A |
| Calibration | Open Circuit / Short Circuit: Avoid the misreading caused by the stray capacitance from kelvin clips and fixtures |
| Auto-save when power-off function | When the power is turned off or encounter a power outage, all the data will be saved automatically and recovered when tester system is switched on again |
| Power Supply | Voltage 90-132Vac or 198-264Vac (selectable) |
|
| Frequency 47 ~ 63Hz |
| Display | 320x240 dot-matrix display |
| Interface | RS-232, GPIB (option), Handler (option) |
| Flash Memory | Built-in flash for storage of 64 groups of Multi-steps setting (Each group contains up to 30 steps) |
| Operation | Auto、Manual, RS-232, GPIB (option), Handler (option) |
| Environment | Temperature : 10°C to 40°C Humidity : 20 ~ 90% |
| Dimension (WxHxD) | 340x133x525 mm |
| Weight | 6.5 Kg |
Parameters Measurement Ranges
| ｜Z｜ R X | 0.1 mΩ - 100MΩ |
| ｜Y｜ G B | 10nS - 1000S |
| Cs Cp | 0.01pF - >1F |
| Ls Lp | 0.01nH - 100KH |
| D | 0.00001 - 9.9999 |
| Q | 0.1 - 9999.9 |
| DCR | 0.1mΩ - 100MΩ |
| Δ% | -999.99% - 999.99% |
| Θ | -180° - +180° |
Applications
Resistance, Capacitance, Inductance, Oscillators, Sensors, Delay Line, Filters, Resonators

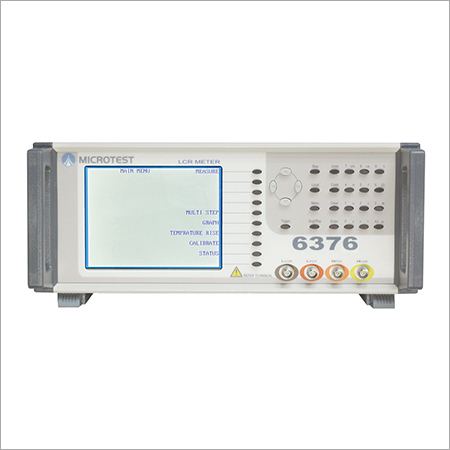

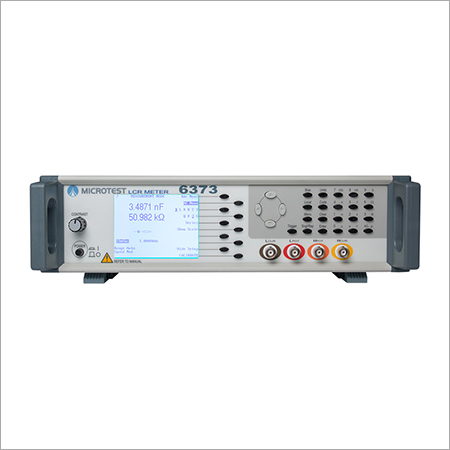

Other Products in 'LCR Meter' category
