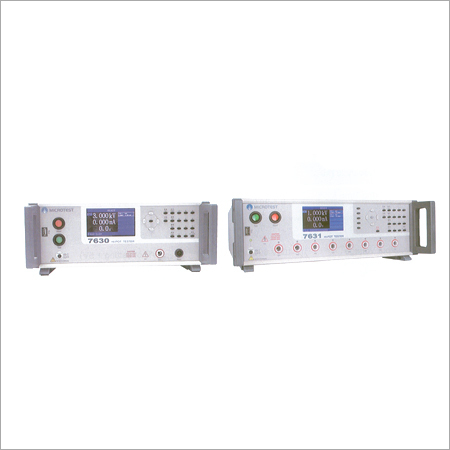

7631 Precision Hipot Tester
Product Details:
- Usage For Industrial Use
- Color White
- Material Aluminum
- Product Type Hipot Tester
- Click to View more
7631 Precision Hipot Tester Price And Quantity
- 1000.00 - 3000.00 INR/Unit
- 1 Unit
7631 Precision Hipot Tester Product Specifications
- Aluminum
- White
- For Industrial Use
- Hipot Tester
7631 Precision Hipot Tester Trade Information
- 1000 Unit Per Month
- 3 - 4 Week
- All India
Product Description
A 7631 Precision Hipot Tester checks for "fine isolation" and makes certainty of no current will run from one end to another end. In the past, this kind of tester utilized OP amplifier technique which is simple to be interfered by the transformation of input voltage. HT7630 series utilize PWM amplifier technique, the constant output voltage attain "security" and "reliable" measurement. Mounted twenty channels expansion metal box saving space for manufacturing line and enhancing capacity.
Key Features:
- 9 Channels
- Graphic LCD
- Built-in programmable PLC remote control interface
- Built-in discharge circuit
- AC/DC hipot and insulation test
- Arcing detection
- Built-in RS-232 and USB Device
- Adjustable ramp time
- True RMS measurement circuit
Measurement Data
| Item | Range | Resolution | Accuracy |
| AC Output Voltage | 10V ~ 5000V | 1 | ±(3% of setting+5V) |
| AC Output Frequency | 50 / 60Hz |
|
|
| AC Upper Threshold (mA) | 0.001 ~ 31 | 0.001 | ±3% |
| AC Lower Threshold (mA) | 0 ~ 30.99 | 0.001 | ±3% |
| AC Test Duration (Ramp Time) | 0.1 ~ 999s (0.1 ~ 10s) | 0.1 |
|
| AC Arcing Detection | 0 ~ 20 |
|
|
| DC Output Voltage | 10V ~ 6000V | 1 | ±(3% of setting+5V) |
| DC Upper Threshold (mA) | 0.001 ~ 5 | 0.001 | ±3% |
| DC Lower Threshold (mA) | 0 ~ 4.99 | 0.001 | ±3% |
| DC Test Duration (Ramp Time) | 0.1 ~ 999s (0.1 ~ 10s) | 0.1 |
|
| DC Arcing Detection | 0 ~ 5 |
|
|
| IR Output Voltage | 10 ~ 1000Vdc | 1 | ±(3% of setting+5V) |
| IR Upper Threshold (MΩ) | 1 ~ 12000 | 1 | 100 ~ 500V, 1 ~ 1000MΩ(±5%) 500 ~ 1000V, 2 ~ 12000MΩ(±5%) |
| IR Lower Threshold (MΩ) | 0 ~ 11999 | 1 | |
| IR Test Duration (Ramp Time) | 0.1 ~ 999s (0.01 ~ 10s) | 0.1 |
|
Technical Specifications
| Power Supply | Voltage 90 ~ 264Vac |
|
| Frequency 50 / 60Hz |
| Display | 480x272, 4.3" TFT LCD |
| Interface | RS-232 ／ PLC Remote ／ USB Host ／ USB Device ／ EXT IO |
| PLC Remote Control | Test, Abort |
| PLC Output Signal | Pass, Fail, HV output, Testing |
| Flash Memory | 30 sets |
| Operation | Manual, Remote Trigger |
| Environment | Temperature : 5℃ ~ 40°C Humidity : 0 ~ 80% |
| Dimension (WxHxD) | 435x145x500 (mm) |
| Weight | 13 (Kg) |
Measurement Items
| AC Withstand | 10V - 5000V |
| DC Withstand | 10V - 6000V |
| Insulation Resistance | 10V - 1000Vdc |
| Arcing | 0~ 20 |
Applications
Transformers, Motors, Capacitors, Inductors, Wires and Wave Filters
