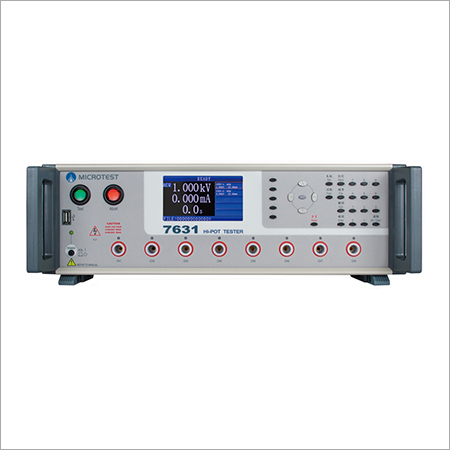

Precision Hipot Tester
Product Details:
- Material Aluminium
- Color White
- Product Type Hipot Tester
- Usage For Industrial Use
- Click to View more
Precision Hipot Tester Price And Quantity
- 1 , , Unit
- 1000.00 - 3000.00 INR/Unit
Precision Hipot Tester Product Specifications
- White
- For Industrial Use
- Hipot Tester
- Aluminium
Precision Hipot Tester Trade Information
- 1000 , , Unit Per Month
- 3 - 4 Week
- All India
Product Description
We are known for providing the best quality products to our customers. Our Precision Hipot Tester is a highly reliable product for testing. It ensures that no current flows from one end to another end. Earlier such testers used the technology of OP amplifier but these testers use the technique of PWM amplifier. These amplifiers give much more security and accurate measurements. Our Precision Hipot Tester has the built-in programmable PLC remote control interface and discharge circuit.
Features:
- High consistency
- Uses latest technology
- Available at reasonable rates
Precision Hipot Tester
Features
- 9 Channels (7631)
- Graphic LCD
- Built-in programmable PLC remote control interface
- Built-in discharge circuit
- AC/DC hipot and insulation test
- Arcing detection
- Built-in RS-232 and USB Device
- Adjustable ramp time
- True RMS measurement circuit
Standard Accessories
- Power Cord
- User Manual CD
- HV Test Cable
- D-Sub footswitch (F760001)
Optional Accessories
- RS-232 Cable
- Scan Box (F7620)
- Remote Cable
- 20 Channels Expansion Box
Measuring Range
| AC withstand | 10V-5000V | Insulation Resistance | 10V-1000Vdc |
| DC withstand | 10V-6000V | Arcing | 0-20 |
Technical Specifications
| Measuring Item | Range | Resolution | Accuracy |
| AC Output Voltage | 10V ~ 5000V | 1 | ±(3% of setting+5V) |
| AC Output Frequency | 50 / 60Hz |
|
|
| AC Upper Threshold (mA) | 0.001 ~ 25 | 0.001 | ±3% |
| AC Lower Threshold (mA) | 0 ~ 24.99 | 0.001 | ±3% |
| AC Measuring time (Ramp Time) | 0.1 ~ 999s (0.1 ~ 10s) | 0.1 |
|
| AC Arcing | 0 ~ 20Supplier,Exporter |
|
|
| DC Output Voltage | 10V ~ 6000V | 1 | ±(3% of setting+5V) |
| DC Upper Threshold (mA) | 0.001 ~ 5 | 0.001 | ±3% |
| DC Lower Threshold (mA) | 0 ~ 4.99 | 0.001 | ±3% |
| DC Measuring time (Ramp Time) | 0.1 ~ 999s (0.1 ~ 10s) | 0.1 |
|
| DC Arcing Detection | 0 ~ 5 |
|
|
| IR Output Voltage | 10 ~ 1000Vdc | 1 | ±(3% of setting+5V) |
| IR Upper Threshold (M) | 1 ~ 12000 | 1 | 100 ~ 500V, 1 ~ 1000M(±5%) 500 ~ 1000V, 2 ~ 12000M(±5%) |
| IR Lower Threshold (M) | 0 ~ 11999 | 1 | |
| IR Measuring time (Ramp Time) | 0.1 ~ 999s (0.01 ~ 10s) | 0.1 |
|
General Specifications
| Power Supply | Voltage 90 ~ 264Vac |
|
| Frequency 50 / 60Hz+5% |
| Display | 480 x 272, 4.3" TFT LCD |
| Interface | RS-232 PLC Remote USB Host USB Device EXT IO |
| PLC Remote Control | Test, Abort |
| PLC Output Signal | Pass, Fail, HV output, Testing |
| Flash Memory | 30 sets |
| Multi-steps mode | 16 steps |
| Environment | Temperature : 5 ~ 40°C Humidity : 0 ~ 80% |
| Dimension (WxHxD) | 365x145x430 (mm)---7630 435x145x500mm--7631 |
| Weight | 14 (Kg) 7630 15 (kg)-7631 |
