7710 Impulse Surge Tester
Product Details:
- Material Aluminium
- Color White
- Usage For Industrial Use
- Product Type Surge Tester
- Click to View more
7710 Impulse Surge Tester Price And Quantity
- 1 Unit
- 1000.00 - 3000.00 INR/Unit
7710 Impulse Surge Tester Product Specifications
- White
- Surge Tester
- Aluminium
- For Industrial Use
7710 Impulse Surge Tester Trade Information
- 1000 Unit Per Month
- 3 - 4 Week
- All India
Product Description
Coils are used in a large spectrum of usages e.g. generator, motor, transformer, ignition coil for motorcycles & cars, relay, filter, electromagnet and varied inductors, almost all the electrical as well as electronic items have to utilize coils. However, coils do not have an absolute automatic production procedure like the existing enameled wires and the standard electronic components are neither defect-free during manufacturing nor ensure 100 per cent quality assured. 7710 High voltage Impulse / Surge Tester is a two-channel 10KV impulse winding device that offers the comparison of waveform functions that is Area under curve ratio, Voltage time difference, Area size ratio and you can utilize the cursor to choose required comparison collection in order to cover all the waveform differences produced by electrical properties then find out a defective parts. This High voltage Impulse Tester offers varied harmonics method and accommodate all types of coils, and become the finest tester that customer are able to search on the market so as to certify coil quality.
Key Features:
- Lower power pulses test function
- Low power non-destructive test analysis
- Automatic Level Control Function (ALC)
- Waveform learning comparison to achieve rapid test speed

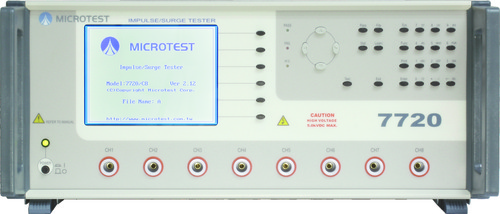

- 8channels test (7720)
- Multiple winding test function
- Interchangeable between Chinese and English operational interfaces
- Provide statistic and print functions
Measurement Data
| Channel | 2 |
| Impulse Voltage | 200V ~ 10000V |
| Accuracy | ±2% |
| Measurement time | 50mS |
Technical Specifications
| Power Supply | 98 ~ 132Vac or 192 ~ 264Vac |
| Display | 320x240 dot-matrix display |
| Interface | RS-232, Print port, Remote Control |
| Flash Memory | 200 sets |
| Operation | Auto、Manual |
| Environment | Temperature : 10℃ to 40℃ Humidity : 20 ~ 90% |
| Dimension (W x H x D) | 435x133x525 (mm) |
| Weight | 8 (Kg) |
Measurement Items
- Total Area
- Area size comparison
- Waveform comparison
- Flutter
- Corona
Applications
Include Inverters, Power Inductors, Transformers, Motors, Wave Filters, Capacitors and Wires
