MT-6910 Motor Stator Testing System
Product Details:
- Color White
- Dimension (L*W*H) 337 x 145 x 522 Millimeter (mm)
- Material Aluminum
- Click to View more
MT-6910 Motor Stator Testing System Price And Quantity
- 1 Unit
- 1000.00 - 3000.00 INR/Unit
MT-6910 Motor Stator Testing System Product Specifications
- Aluminum
- 337 x 145 x 522 Millimeter (mm)
- White
MT-6910 Motor Stator Testing System Trade Information
- 1000 Unit Per Month
- 3 - 4 Week
- All India
Product Description
- Standard system is the Super Space-Saving Desktops Tester.
- Optional system is the Systematic Modular Cabinet Tester.
Key Features:
- Both the internal wire resistance and the contact resistance will not affect the measurement. Using the 4-wire measurement will be more accurate than others
- To meet the standard test projects requirement of the international companies
- To control and analysis the programs will reduce the human careless and misjudgment
- Easy to edit environment and easy to learn
- It can test multiple sets of DUTs simultaneously(depending on the number of winding set of the product)
- When there are several DUTs are tested, it could identify the undesirable sets individually
- The Impulse/Surge with waveform comparison is a non-destructive analysis
- Maximum saved files will be up to 100 sets
- It provides the password function
- Speeding test could save time and improve efficiency
- Chinese/English screen could be switched arbitrarily
| DCR | |
| Range | 0.1mΩ ~ 100KΩ (4-wire measurement) |
| Accuracy | Low Resistance：0.1mΩ ~ 1Ω ±( 0.2% ± 1mΩ) |
| Hipot | |
| Voltage | AC 0.1KV ~ 5KV DC 0.1KV ~ 6KV |
| Leakage Current | AC 0 ~ 10mA DC 0 ~ 5mA |
| Arcing | 0 ~ 9 |
| Measurement Time | 0.1 ~ 99.9 Continously Adjustable |
| Accuracy | 3% |
| IR | |
| Voltage | 100V ~ 1000V ±5% |
| Range | 1MΩ ~ 9.9GΩ |
| Measurement Time | 0.1 ~ 99.9 Continously Adjustable |
| Accuracy | 3% |
| Short Circuit | |
| Voltage | 0.2KV ~ 3KV ±2% |
| Measurement Item | Total Area、Area size comparison、Flutter、Waveform comparison、Corona |
| Accuracy | 2% |
Using the DCR 4-wire Measurement
Both the internal wire resistance and the contact resistance will not affect the measurement. Using the 4-wire measurement will be more accurate than others.
Specification
| Channel | 8 channels |
| Indicator | Pass/Fail Screen Diaplay/Sound |
| Fixture | According to the test requirements |
| Power Supply | 90 ~ 132Vac or 198 ~ 264Vac (selectable) |
| Interface | RS-232 |
| Flash Memory | Storage of 100 rewritable data sets |
| Operation | Manual、RS-232 |
| Environment | Temperature : 10°C ~ 40°C Humidity : 20 ~ 90% |
| 6905 Dimension (W*H*D) / Weight | 435x133x525 mm / 12.5 Kg |

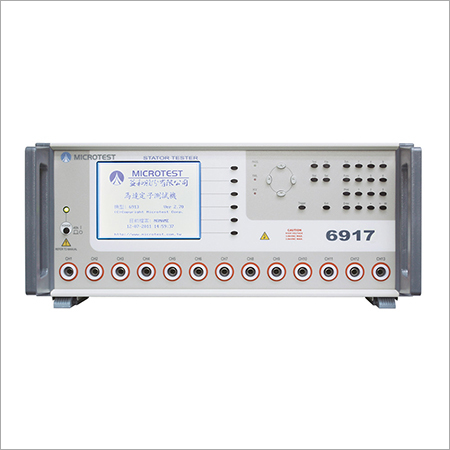

| 6917 Dimension (W*H*D) / Weight | 435x178x525 mm / 15 Kg |
| 6905 Display | 128*64 dot-matrix display |
| 6917 Display | 320*240 dot-matrix display |
Application
Motor

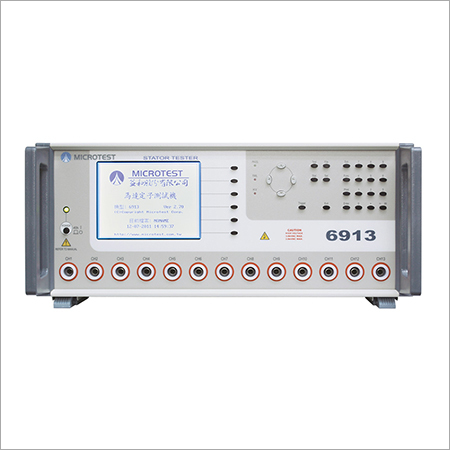

Other Products in 'Motor Stator Testing System' category
