5436 Automatic Relay Tester
Product Details:
- Material Aluminum
- Voltage 230 Volt (v)
- Color White
- Product Type Relay Tester
- Application For Industrial Use
- Click to View more
5436 Automatic Relay Tester Price And Quantity
- 1 Unit
- 1000.00 - 3000.00 INR/Unit
5436 Automatic Relay Tester Product Specifications
- 230 Volt (v)
- For Industrial Use
- Relay Tester
- Aluminum
- White
5436 Automatic Relay Tester Trade Information
- 1000 Unit Per Month
- 3 - 4 Week
- All India
Product Description
Transformer testers 5436 have test frequency of 20Hz~500kHz and 48 test points. By choosing progressive patent designs, these testers are able to run into all your test demands for multi-pin web transmission transformers under the identical volume status. To preclude the fixture intervention from touching sounded values during testing, the software possesses high-frequency recompense utility (zero-setting when the artifact combats Open/Short), which shows the readings from fixture nearly same as earlier. The tester credibility of these products are superb and these are the best picks for transformer testing. The applications of these transformer tester considers network communication transformers and power transformers.
Technical Specifications
Measurement Data
| Frequency | 20Hz-500KHz |
| Turn Ratio Frequency | 50Hz ~ 200kHz(10Vac Max.) |
| Measurement Parameters | Inductance (L)、Impedance (Z)、Capacitance (C)、Resistance (R)、Conductance (G)、Susceptance (B)、Admittance (Y)、Alternating Current Resistance (ACR)、Quality Factor (Q)、Phase angle(Ø)、Direct Current Resistance (DCR)、Leakage Inductance、Turn Ratio、Balance、Short Circuit |
| Basic Accuracy | ±0.1%(AC parameter : 1KHz) |
| Output Impedance | 100Ω |
| Frequency trimming resolution | 5digits |
| Frequency output accuracy | ±0.01% |
| Point of Test | 48 Points |
| ESR | Series/Parallel |
| Mathematical Mode | Absolute/Percentage |
| Calibration | Open Circuit/ Short Circuit |
Technical Parameter
| Power Supply | Voltage 90Vac ~ 125Vac or 190Vac ~ 250Vac |
|
| Frequency 48Hz ~ 62Hz |
| Display | 320*240dot-matrix display |
| Interface | RS-232, Handler (option), USB (option) |
| Flash Memory | 60 sets |
| Operation | Auto、Manual、Remote Trigger |
| Environment | Temperature : 10℃ ~ 40℃ Humidity : 10% ~ 90% |
| Dimension (W*H*D) | 365x145x396 mm |
| Weight | 9 Kg |
Parameters Measurement Ranges
| Parameter | Range | Basic Accuracy | speed |
| L, LK | 0.1nH ~ 9999.99H | 0.1% | 75ms |
| C | 0.00001pF ~ 999.99mF | 0.1% | 75ms |
| Q,D | 0.00001 ~ 99999 | 0.0005 | 75ms |
| Z,X,R | 0.00001Ω ~ 99.9999MΩ | 0.1% | 75ms |
| Y | 0.01nS ~ 99.9999S | 0.1% | 75ms |
| θ | -180°~ +180° | 0.03° | 75ms |
| DCR | 0.01mΩ ~ 99.999MΩ | 0.1% | 25ms |
| Turn | 0.01 ~ 99999.99turns | 0.5% | 75ms |
| Pin-Short | 12 pairs, between pin to pin | -- | 25ms |

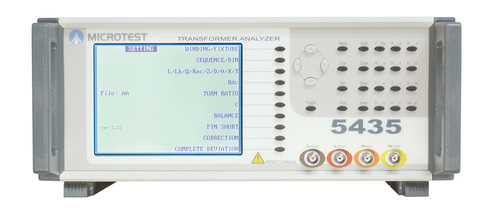

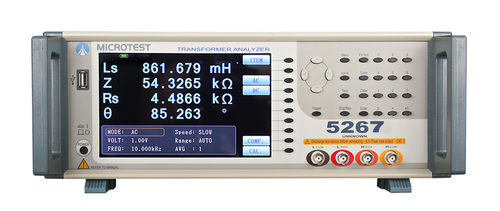

Other Products in 'Transformer Tester' category
